Photonic lanterns
UCF Astrophotonics Lab · CREOL · 2025 – present

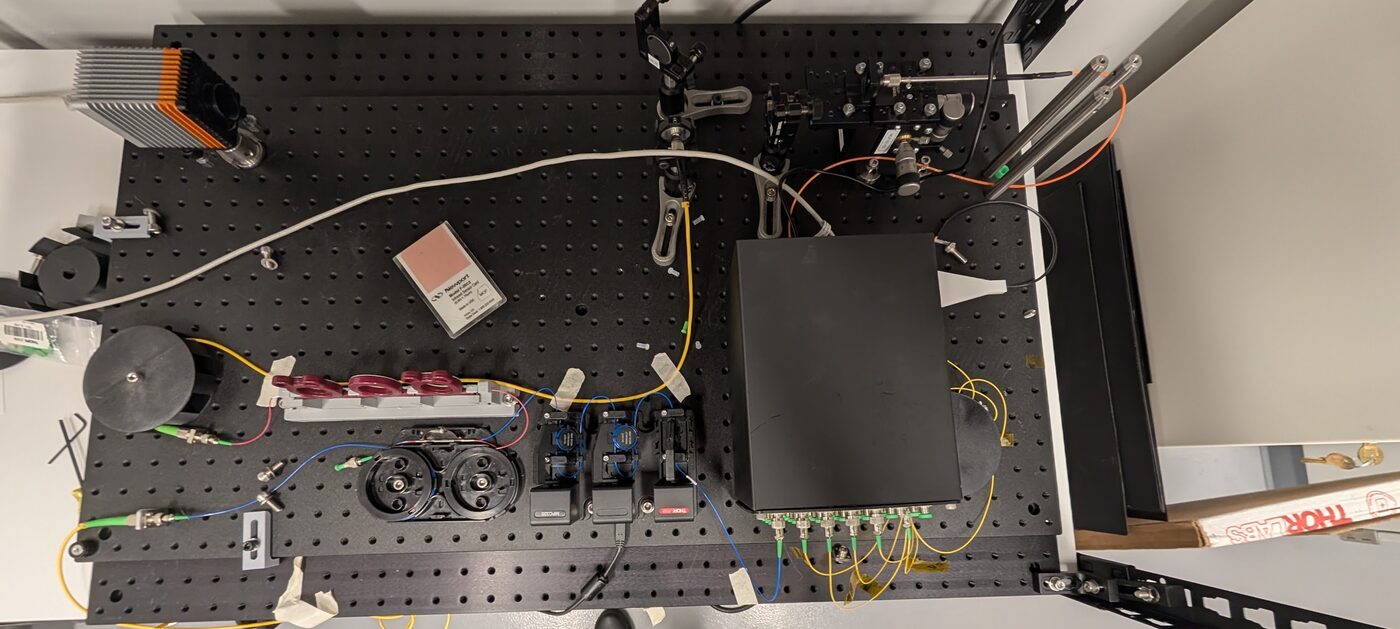

The off-axis digital holography bench.
A photonic lantern couples a multimode fibre to an array of single-mode fibres. Using one for
astronomy — feeding starlight from a telescope into single-mode photonic devices — means knowing
exactly how light entering each port emerges from the multimode end, in amplitude and phase, at
every wavelength of interest. That relationship is the device's complex transfer matrix.
Measurement
The matrix is recovered by off-axis digital holography, extending the approach of Dobias et
al., Opt. Express 34 (9), 17217 (2026). I align the interferometric bench and
acquire holograms of the multimode output for each input port across the C-band, 1525–1575 nm —
recovering full amplitude and phase, one row of the transfer matrix per measurement.
Analysis
I implemented the phase-retrieval and mode-decomposition pipeline: FFT sideband isolation and
demodulation, a Butterworth low-pass, then joint numerical optimisation of mode-field diameter,
defocus quadratic phase and field position. The recovered field is decomposed onto the LP basis
to give complex modal amplitude and phase.
Automation
The acquisition chain runs four instruments together — tunable laser, InGaAs camera, fibre
switch, and motorised polarisation control — so a complete all-port × C-band sweep runs
unattended. Polarisation is optimised in-loop for peak fringe contrast and saturated frames are
rejected as they arrive. A full sweep used to take days of manual bench time.
Results
- 98%
Reconstruction fidelity against simulated fields.
- 50 nm
C-band sweep, 1525–1575 nm, per input port.
- 6 & 7
Port lanterns fully characterized.
- 4
Instruments automated into one unattended run.
Supervised by Dr. Stephen Eikenberry, UCF Astrophotonics Lab, CREOL — UCF's College of
Optics and Photonics.
